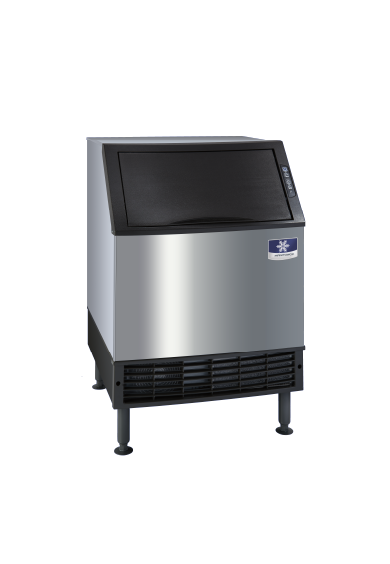

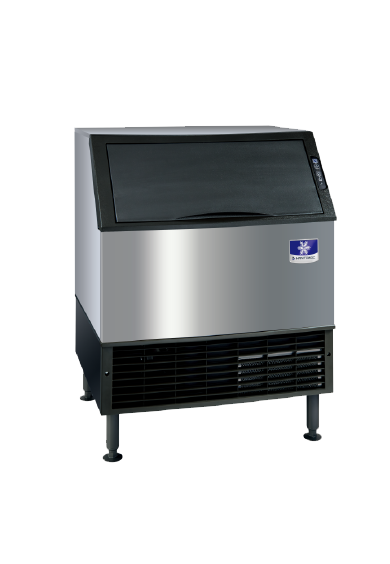

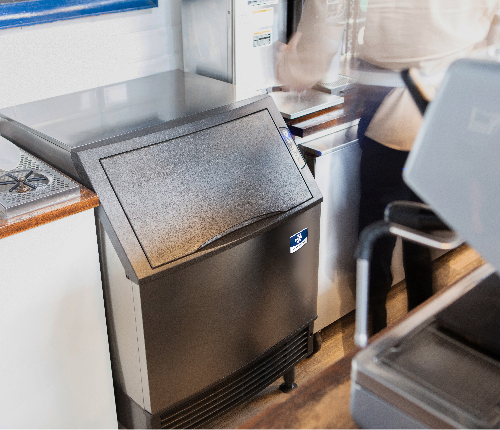

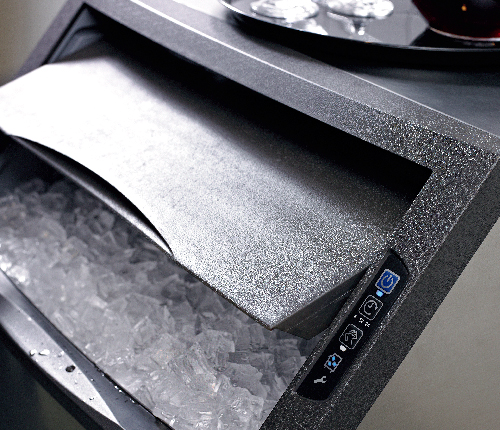

Manitowoc 萬利多 NEO 系列製冰機，以製冰性能的全面提升，樹立櫃檯式製冰機行業新標準。其設計更為緊湊合理，然製冰量與儲冰量毫不遜色於前代。能效表現極為出色，多數型號契合美國「能源之星」標準，節水 25%、節電 10%，有效削減門店營運成本。研發過程中，尤為注重運行穩定性，憑藉堅固合理的內部結構、久經考驗的垂直蒸發盤以及設計精妙的模組構造，得以實現高效製冰作業，清潔與維護亦更便利。廣泛應用於品牌酒店行政酒廊、快餐連鎖店、中小型咖啡連鎖店、烘焙店、精品咖啡 & 酒吧及會所等各類門店。
產品詳情：
24小時製冰量: 62 kg<br />
儲冰量: 40 kg / 90 lbs.<br />
冷媒: R404A<br />
電氣規格: 115V/60Hz/1ph; 230V/50Hz/1ph<br />
冷卻規格: Air
24小時製冰量: 88 kg
儲冰量: 40 kg / 90 lbs.
冷媒: R404A
電氣規格: 115V/60Hz/1ph; 230V/50Hz/1ph
冷卻規格: Air
24小時製冰量: 99 kg
儲冰量: 40 kg / 90 lbs.
冷媒: R404A
電氣規格: 115V/60Hz/1ph; 230V/50Hz/1ph
冷卻規格: Air / Water
24小時製冰量: 132 kg
儲冰量: 54 kg / 119 lbs.
冷媒: R404A
電氣規格: 115V/60Hz/1ph; 230V/50Hz/1ph
冷卻規格: Air / Water
NEO 清潔影片
| 產品 | 型號 | 電氣規格 | 24小時製冰量 | 儲冰量 | 冷媒 | 觸控面板 | 設備尺寸長 x 深 x 高 | 冷卻規格 | 每100磅冰用電量 | 每100磅冰用水量 | 典型儲冰箱搭配 型號/儲冰量 | 零件手册 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UYF0140 | UYF0140AUYF0140A (60Hz) | 230V/50Hz/1ph115V/60Hz/1ph | 62 kg / 137 lbs. (air cooled)62 kg / 137 lbs. (air cooled) | 40 kg / 90 lbs.40 kg / 90 lbs. | R404AR404A | NoNo | 66.04 x 72.4 x 97.8 cm66.04 x 72.4 x 97.8 cm | air cooledair cooled | 9.29.2 | 16.7 gal16.7 gal | D040, 40 kg / 90 lbs.D040, 40 kg / 90 lbs. | 下載 |
| UYF0190 | UYF0190AUYF0190A (60Hz) | 230V/50Hz/1ph115V/60Hz/1ph | 88 kg / 193 lbs. (air cooled)88 kg / 193 lbs. (air cooled) | 40 kg / 90 lbs.40 kg / 90 lbs. | R404AR404A | NoNo | 66.04 x 72.4 x 97.8 cm66.04 x 72.4 x 97.8 cm | air cooledair cooled | 8.38.3 | 21.6 gal21.6 gal | D040, 40 kg / 90 lbs.D040, 40 kg / 90 lbs. | 下載 |
| UYF0240 | UYF0240AUYF0240A (60Hz)UYF0240W (60Hz) | 230V/50Hz/1ph115V/60Hz/1ph115V/60Hz/1ph | 99 kg / 219 lbs. (air cooled)99 kg / 219 lbs. (air cooled)94 kg / 207 lbs. (water cooled) | 40 kg / 90 lbs.40 kg / 90 lbs.40 kg / 90 lbs. | R404AR404AR404A | NoNoNo | 66.04 x 72.4 x 97.8 cm66.04 x 72.4 x 97.8 cm66.04 x 72.4 x 97.8 cm | air cooledair cooledwater cooled | - | - | D040, 40 kg / 90 lbs.D040, 40 kg / 90 lbs.D040, 40 kg / 90 lbs. | 下載 |
| UYF0310 | UYF0310AUYF0310A (60Hz)UYF0310W (60Hz) | 230V/50Hz/1ph115V/60Hz/1ph115V/60Hz/1ph | 132 kg / 290 lbs. (air cooled)132 kg / 290 lbs. (air cooled)133 kg / 293 lbs. (water cooled) | 54 kg / 119 lbs.54 kg / 119 lbs.54 kg / 119 lbs. | R404AR404AR404A | NoNoNo | 76.20 x 72.4 x 97.8 cm76.20 x 72.4 x 97.8 cm76.20 x 72.4 x 97.8 cm | air cooledair cooledwater cooled | 7.27.25.5 | 15.5 gal15.5 gal15.5 gal | D054, 54 kg / 119 lbs.D054, 54 kg / 119 lbs.D054, 54 kg / 119 lbs. | 下載 |
